Mask breathing resistance test device

Boreas

Respiratory mask testing to EN 149, EN 136. Breathing resistance measuring equipment. Testing equipment for inhalation and exhalation resistance test, FFP mask testing with constant airflow

Get a Qouote Download Presentation

For developers and manufacturers

research and verification the development and modernization RPE strategy
to make competitive analysis
to create limiting (extreme) operating conditions of RPE, carrying out life tests
to check requirements of customers during the research and development work
to carry out tests at all stages of the life cycle of RPE according EN, NIOSH, DIN and other standards and regulatory documents

For certification
bodies and testing laboratories

to monitor the RPE quality according EN, NIOSH, DIN and other standards
to carry out advanced individual tests for clients and providing additional services
Research centers and universities
researching and development of recommendations to improve industry safety in the workplace

Research centers and universities

researching and development of recommendations to improve industry safety in the workplace

Gallery

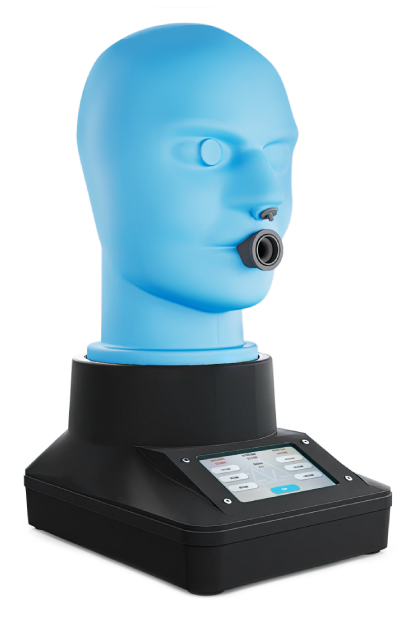

Mask breathing resistance test device "Boreas" creates a constant air flow through the RPE in the directions of "exhalation" and "inhalation" and measures the air
pressure difference between the surrounding atmosphere and the
mask space, calculates the resistance to air flow.

Features

Universal platform for research & quality control of RPE

Breathing parameters

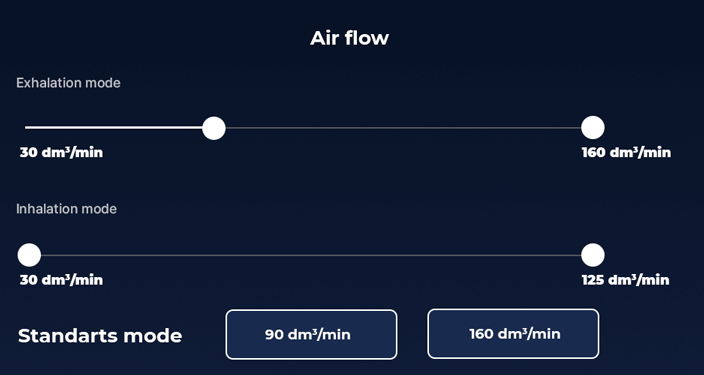

Test device «Boreas» has no restrictions in modes and can create an air flow with any value of volume flow within:

From 30 to 160 dm3 / min in the "exhalation" mode
From 30 to 125 dm3 / min in the "inspiration" mode.

For your convenience, the device contains ready-made modes according to the standards: 90 and 160 dm3/min.

Ergonomic design and mobility

The device can even be placed on a desk, it is easy to move and can be tilted 90 degrees

Weight – no more 4 kg

Ergonomics and
mobility

Test device "Boreas" is made of an inflatable head dummy with a silicone soft-touch coating and creates an ideal obturation with any face pieces .

The device can even be placed on a desk, it is easy to move and can be tilted 90 degrees

Increases the productivity of the testing process

Thanks to its own unique development of hardware and software, mobile test device «Boreas» come to the mode и calculates breathing resistance instantly, and you can do more tests per day.
