Gas capacity test equipment

Dynamics

Gas capacity tester for gas filters of protective masks. Test equipment to EN 14387 test procedure. Test device for determination gas filter breakthrough time.

Get a Qouote Download Presentation

For developers and manufacturers

research and verification the development and modernization RPE strategy
to make competitive analysis
to create limiting (extreme) operating conditions of RPE, carrying out life tests
to check requirements of customers during the research and development work
to carry out tests at all stages of the life cycle of RPE according EN, NIOSH, DIN and other standards and regulatory documents

For certification
bodies and testing laboratories

to monitor the RPE quality according EN, NIOSH, DIN and other standards
to carry out advanced individual tests for clients and providing additional services

Research centers
and universities

researching and development of recommendations to improve industry safety in the workplace

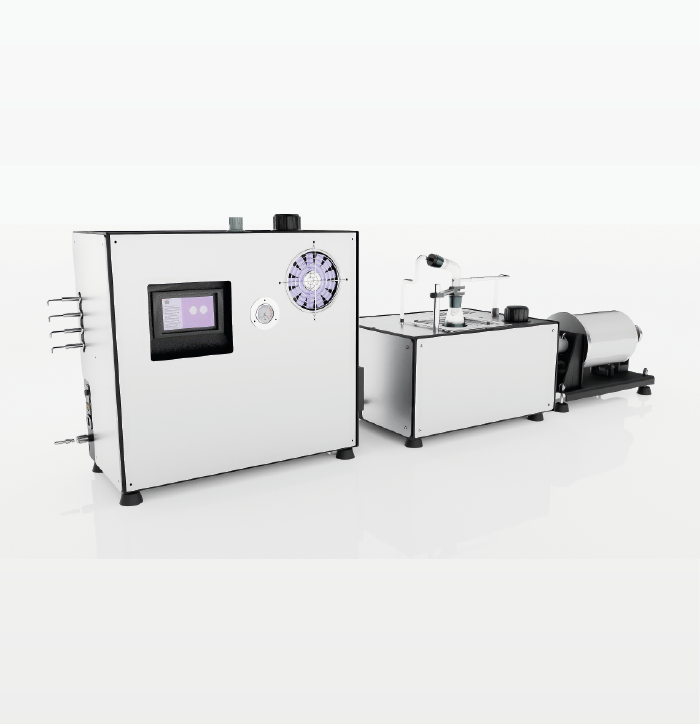

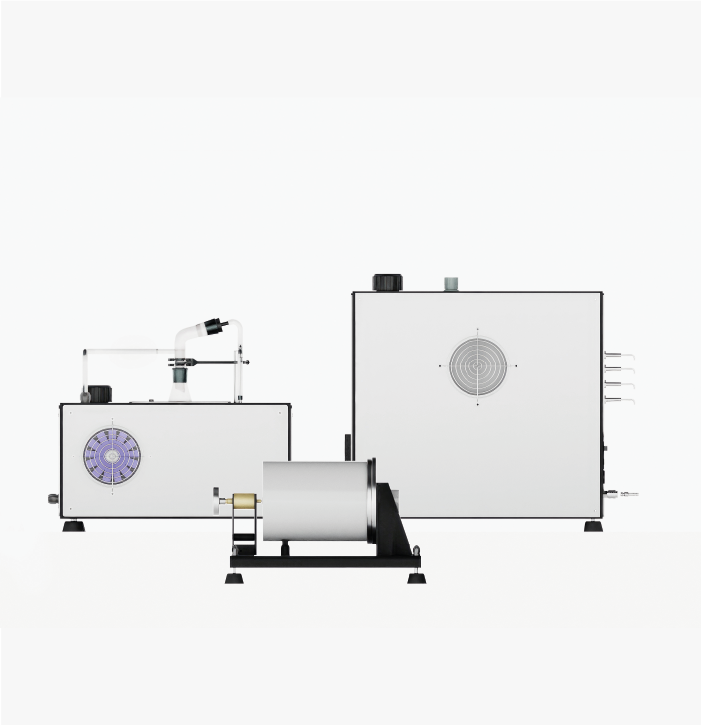

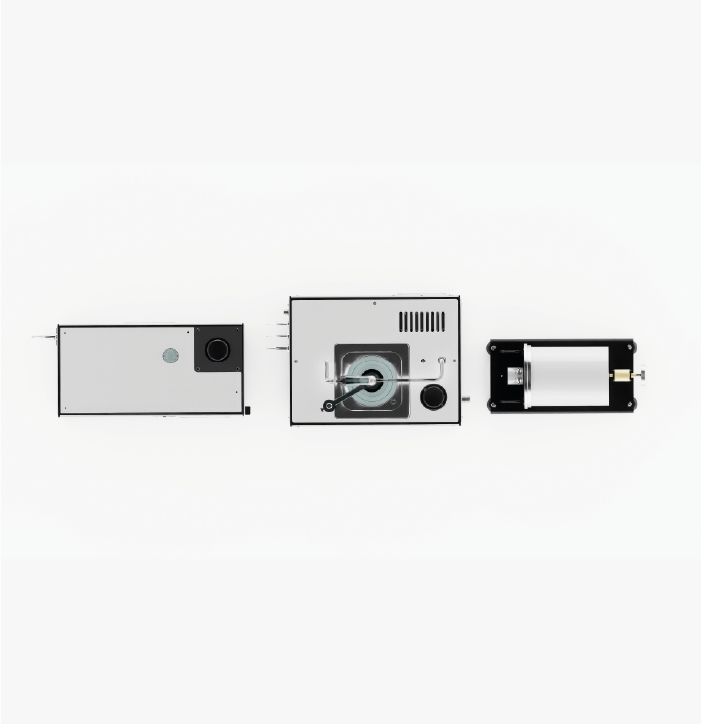

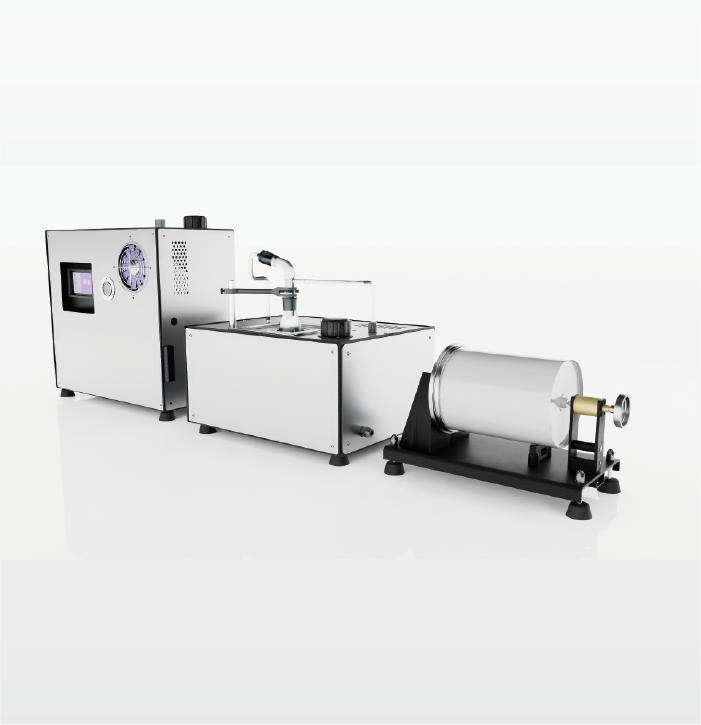

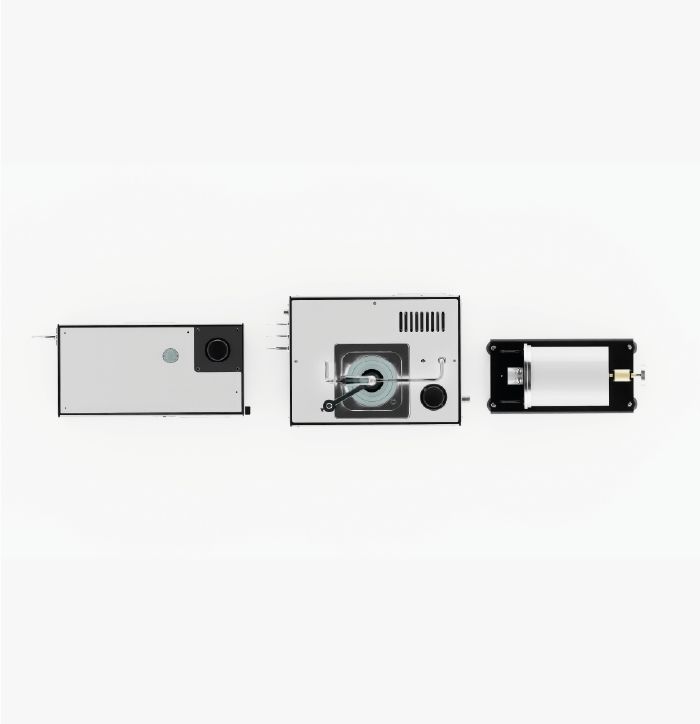

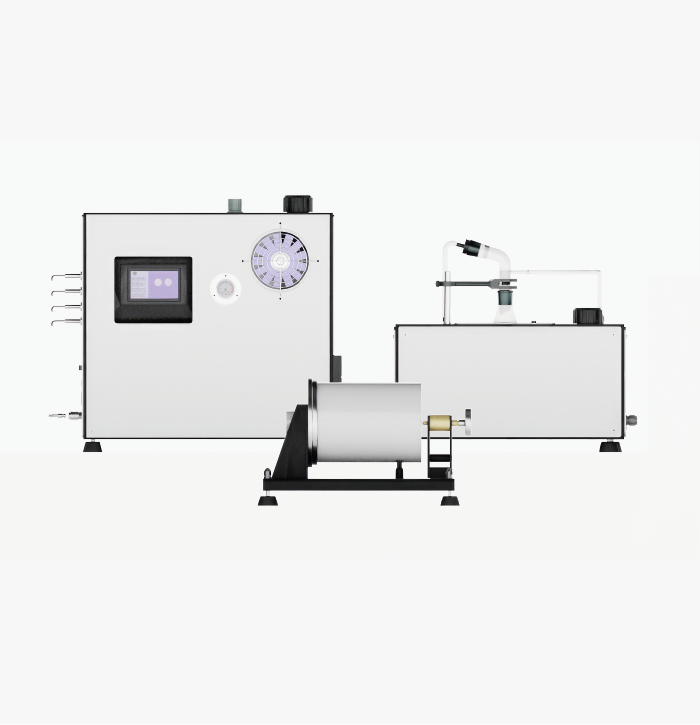

Gallery

Gas capacity test equipment "Dynamics" for gasmask prepares the gas-vapor-air mixture in accordance with the conditions for using the filter - the required temperature, relative humidity, concentration of the test agents. In the test chamber, the mixture passes through the filter until the test agent is detected in the air sample at the outlet of the filter (breakthrough concentration) or until the filter protection time, which is set by the RPE manufacturer, expires.

Configuration

Test different types of filters on the same test equipment Configuration options for one test equipment design:

Dynamics G - 2 to 8* test gases:

chlorine

nitrogen dioxide

sulfur dioxide

ammonia

dimethyl ether

isobutane

hydrogen sulfide

nitric oxide

Dynamics G - 2 to 8* test gases:

hydrogen chloride

arsenic hydrogen

Dynamics V - 1 to 4* test substances:

cyclohexane

hydrogen cyanide

acrolein

benzene

Dynamics G - 2 to 8* test gases:

hydrargyrum

the number of test agents is determined by the customer

Features

Universal platform for research & quality control of RPE

The software and technical capabilities of the " Dynamics " test equipment are suitable for most tests of gas and combined filters according to international standards, and in case of changes or new ones, you do not have to partially or completely replace the equipment - the settings are simply and flexibly changed * in the software.

*within technical possibilities

Modern way of control

Read about own software

Modern way of control

No more manual switching. To control the test equipment, an application is used on a touch-screen display and the app on personal computer with a simple and convenient interface in English. It is possible to quickly and easily master the control of the " Dynamics " and involve even a laboratory intern in the work.

Increases the productivity of the testing process

20 - 60 min comes to test
mode

Data sheet

Technical specifications

Data sheet of test equipment DYNAMICS.pdf

13 KB

Software features

feedback of test results in real-time
automatic control of test parameters, fixation and formation of a test database with results.
to export test results to your devices in PDF&EXCEL-file and print its
to create DATABASE of relevant standards, test modes, types and models of RPE, manufactures of RPE
self-diagnosis
calibration

Interface languages: English

Control: personal computer (laptop), touch display Download
