Test equipment

Monoxide

Developed on the basis of the flagship product Metabolic breathing simulator OXY ROBOT

Get a Qouote Download Presentation

For developers and manufacturers

research and verification the development and modernization RPE strategy
to make competitive analysis
to create limiting (extreme) operating conditions of RPE, carrying out life tests
to check requirements of customers during the research and development work
to carry out tests at all stages of the life cycle of RPE according EN, NIOSH, DIN and other standards and regulatory documents

For certification
bodies and testing laboratories

to monitor the RPE quality according EN, NIOSH, DIN and other standards
to carry out advanced individual tests for clients and providing additional services

Research centers
and universities

researching and development of recommendations to improve industry safety in the workplace

Gallery

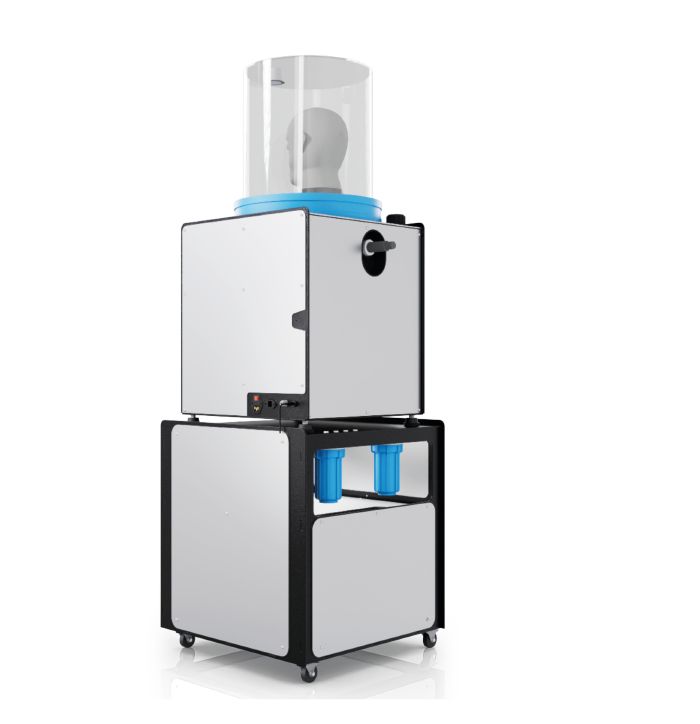

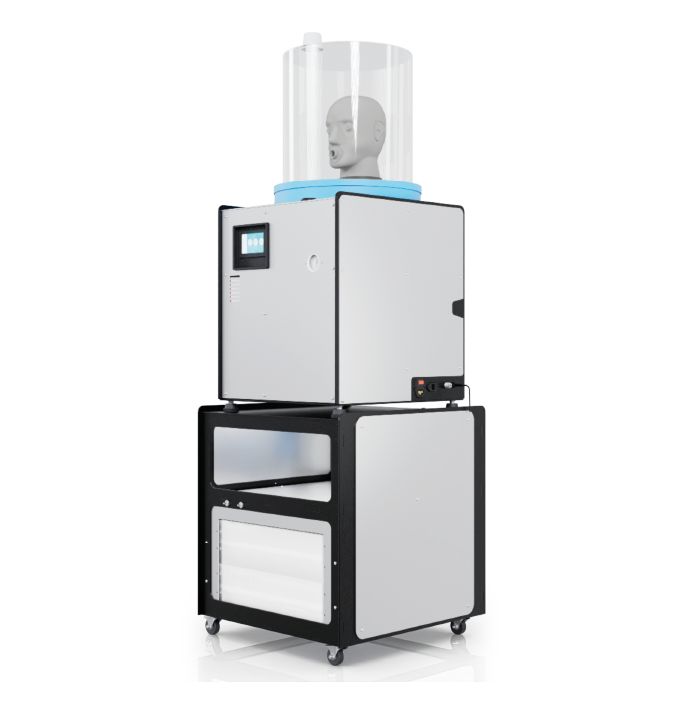

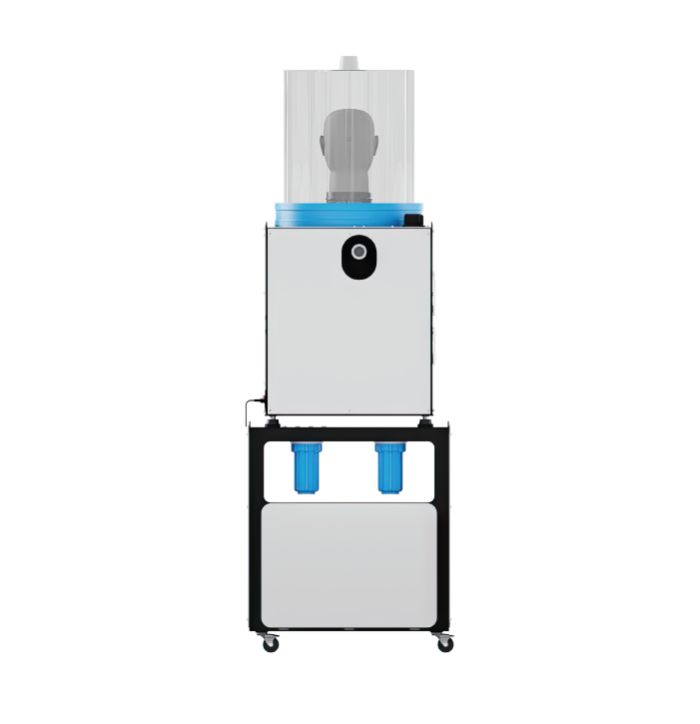

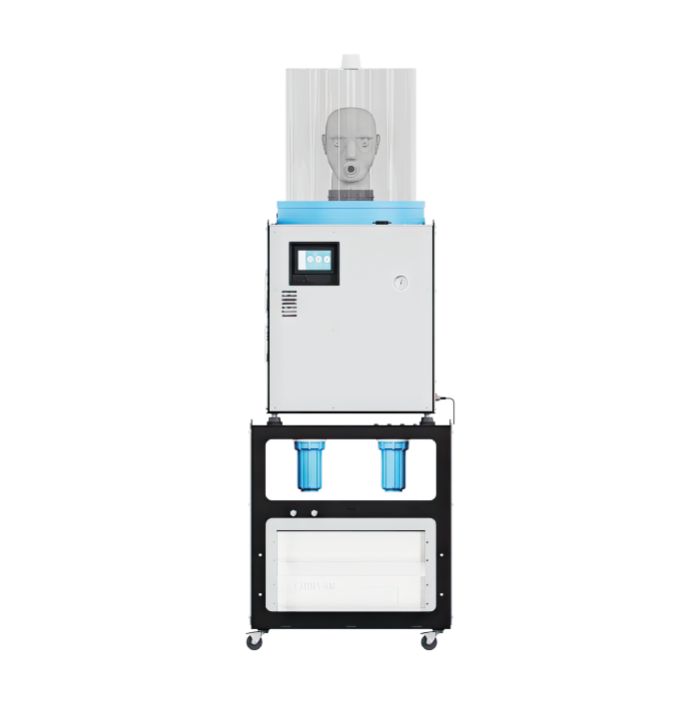

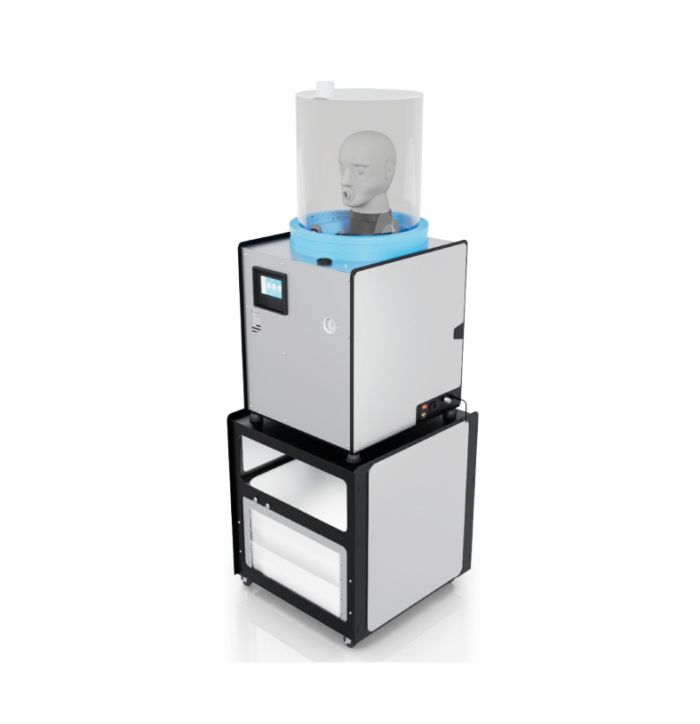

The test equipment "Monoxide" measures the content of carbon monoxide (CO) that has passed through the filter of the RPE in the required time.

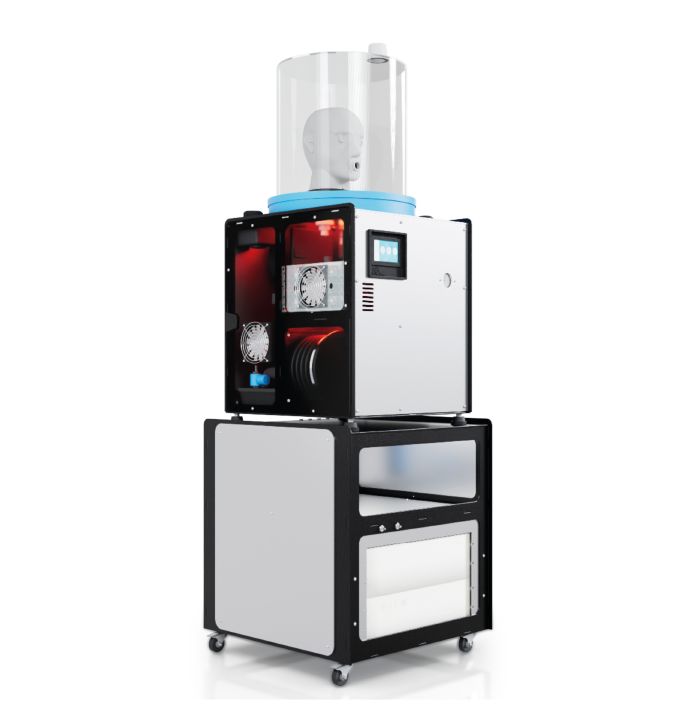

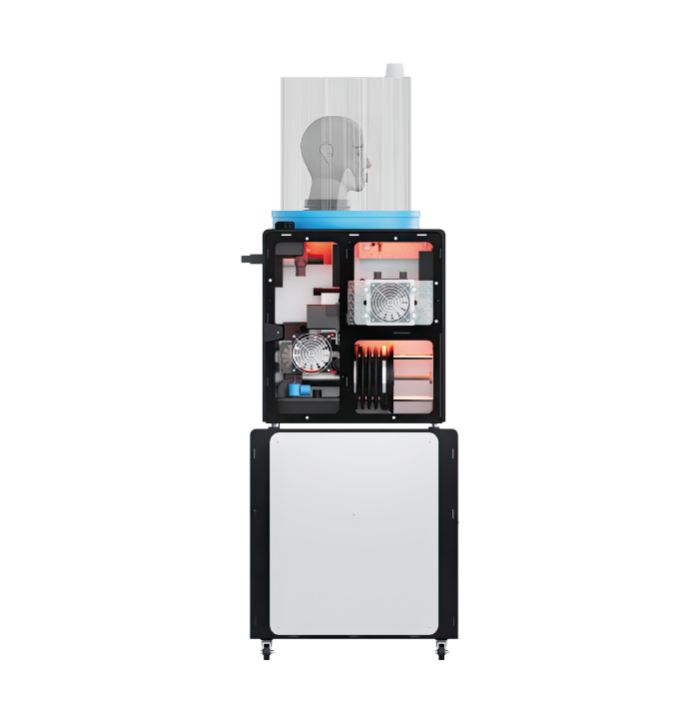

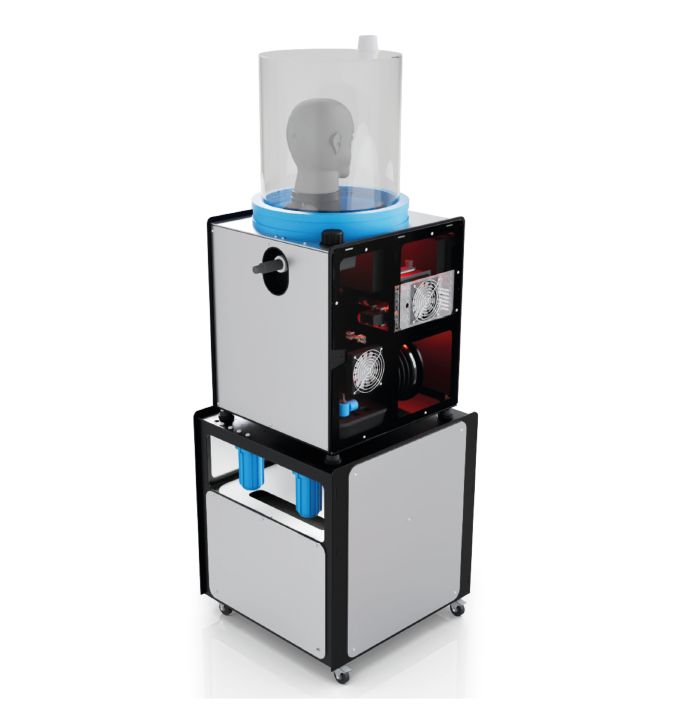

Consists of a test chamber and a breathing simulator with an inflatable dummy head for perfect obturation.

A test atmosphere is created in the chamber with the necessary conditions - temperature, moisture content, volume of carbon monoxide.

The breathing simulator creates a pulsating air flow with the necessary parameters of breathing frequency, breathing depth, temperature and relative humidity on "exhalation".

During the test, the time of the protective action of RPE is determined, i.e. the time from the moment carbon monoxide enters the filter to the moment it appears behind the filter in a breakthrough concentration

Features

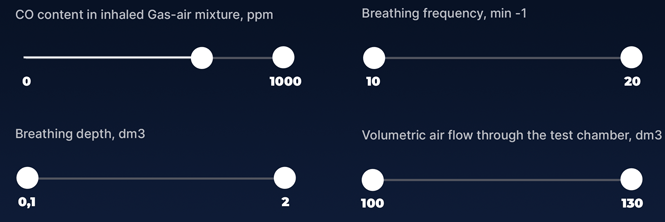

Breathing parameters

The software and technical capabilities of the “Monoxide” test equipment are suitable for most tests of masks according to international standards, and in case of changes or new ones, you do not have to partially or completely replace the equipment - the settings are simply and flexibly changed * in the software.

This feature will allow you to conduct tests according to your research scenarios.

*within technical possibilities

Modern way of control

To control the test equipment, an application is used on a touch-screen display and the app on personal computer with a simple and convenient interface in English. It is possible to quickly and easily master the control of the "monoxide" and involve even a laboratory intern in the work.

Read about own software

Increases the productivity of the testing process

40 min comes to test mode

Saves time for lab staff

The tests do not require the constant operator presence. Test equipment «Monoxide» software automatically maintains test parameters, records and stores their results.

Read about own software

Lightweight design and advanced ergonomics

Weight – no more 50 kg

Data sheet

Technical specifications

Data sheet of test equipment MONOXIDE.pdf

13 KB

Software features

feedback of test results in real-time
automatic control of test parameters, fixation and formation of a test database with results
to export test results to your devices in PDF&EXCEL-file and print its
to create DATABASE of relevant standards, test modes, types and models of RPE, manufactures of RPE
self-diagnosis
calibration

Interface languages: English

Control: touch display on test equipment, app on personal computer Download
