Metabolic breathing simulator

OXY ROBOT

Automated breathing simulator for testing breathing apparatuses. ISO 16900-5:2016, EN 401 test equipment. SCSR annual monitoring system

Get a Qouote Download Presentation

For developers and manufacturers

research and verification the development and modernization RPE strategy
to make competitive analysis
to create limiting (extreme) operating conditions of RPE, carrying out life tests
to check requirements of customers during the research and development work
to carry out tests at all stages of the life cycle of RPE according EN, NIOSH, DIN and other standards and regulatory documents

For certification
bodies and testing laboratories

to monitor the RPE quality according EN, NIOSH, DIN and other standards
to carry out advanced individual tests for clients and providing additional services

For mining industry

to carry out self-rescuer monitoring program
reproduction of breathing according to the "breathing curve" of a real person at different loads recorded, for example, on the evacuation route from a mine. Such a function is useful in designing an evacuation route, evaluating the parameters of a self-rescuer, arranging storage points for spare self-rescuers and collective rescue.

For SCUBA

for testing SCUBA under overpressure, the Oxy Robot breathing simulator can be equipped with cylinders

Gallery

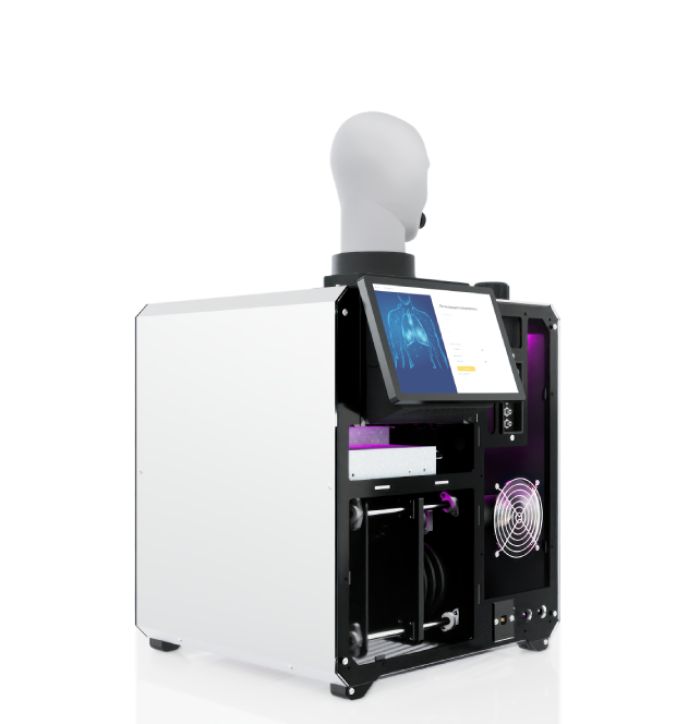

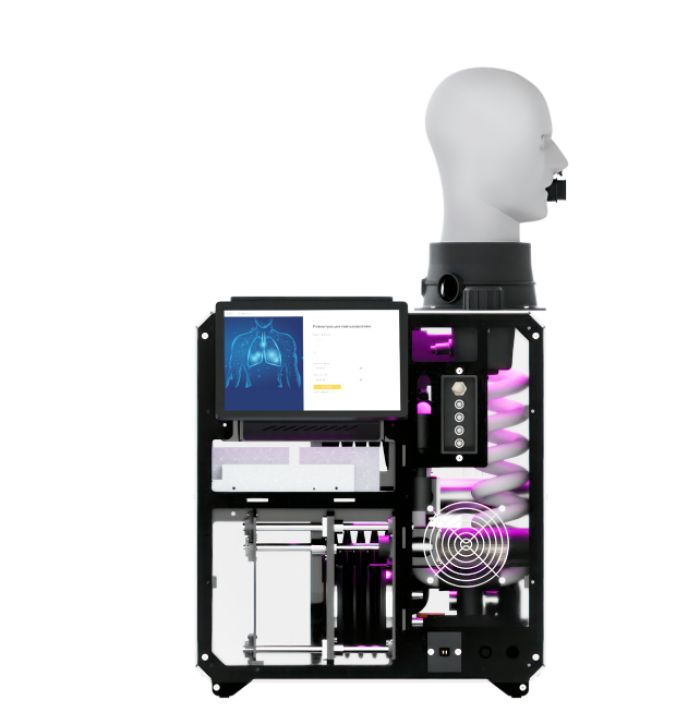

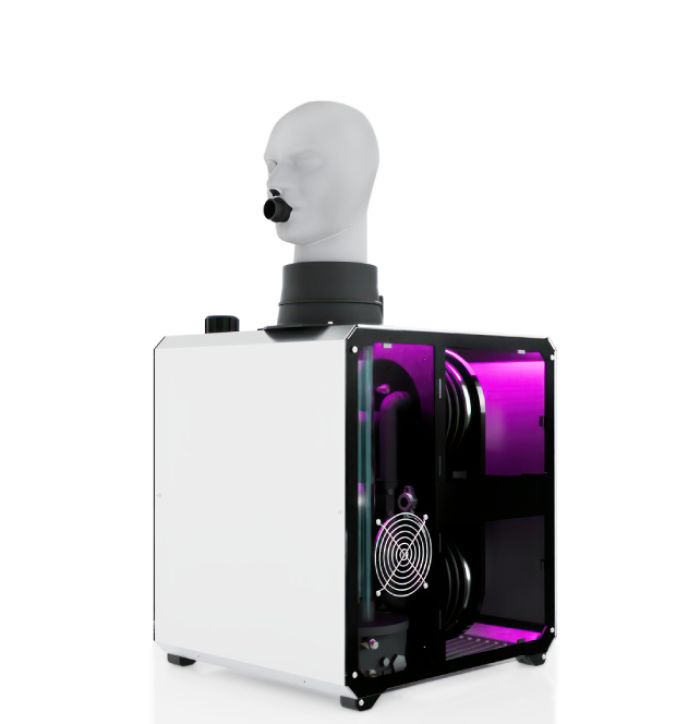

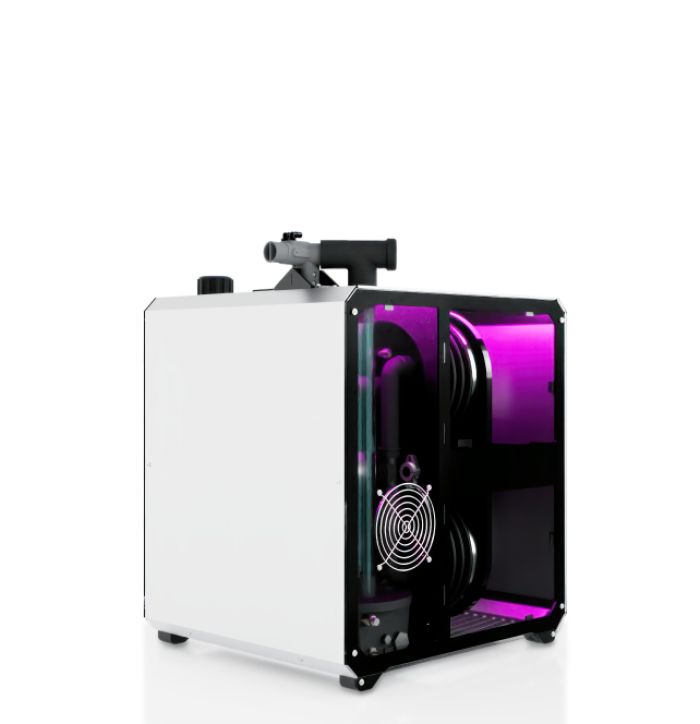

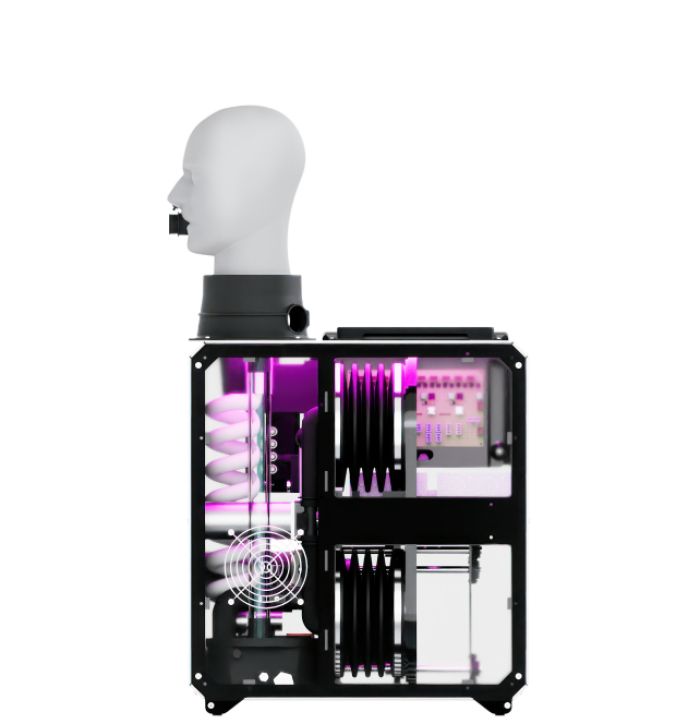

Metabolic breathing simulator "Oxy Robot" recreates the exchange of gases and the process of human external respiration:

Simulates oxygen consumption and carbon
dioxide release
Provides the necessary depth and frequency of breathing
(pulmonary ventilation)
Controls parameters of "exhalation" - humidity within
92-100%, temperature 37 degrees.

It can be used simultaneously with climatic and hydro-, hyperbaric chambers, mannequin of the human head

Features

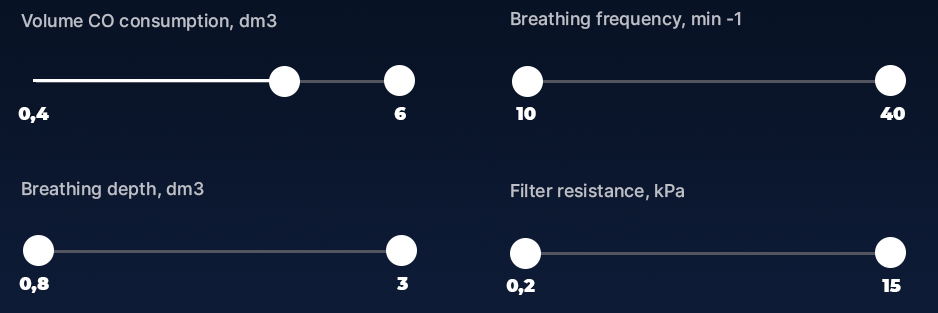

Breathing parameters

"Oxy Robot" complies with the requirements of most international standards for RPE testing, and when amendments are made and new ones appear, you do not have to completely or partially replace the equipment - the database of standards is automatically updated in the bench software.

Unique opportunities for simulating human external respiration

The Oxy Robot platform is the ability to dynamically change the parameters of "breathing" and completely repeat the breathing of a particular person under any dynamically changing load. To do this, it is necessary to record the required spirogram and enter it into the stand application. As part of research tests, you can change breathing parameters (frequency and volume of lung ventilation) without disturbing the heat and humidity regime and get reliable results when testing devices with compressed oxygen and chemically bound oxygen.

Increases the productivity of the testing process

15 min comes to test mode 5 min changes test mode

Saves time for lab staff

The tests do not require the constant presence of the operator. The «Oxy Robot» software automatically maintains test parameters, records and stores their results, and saves staff time.

Read about own software

Intuitive control system

To control the test bench, an application is used on a touch-screen display with a simple and convenient interface in English. Thanks to the training block and tips inside the application, it is possible to quickly and easily master the control of the "Oxy Robot" and involve even a laboratory intern in the work.

Ergonomics and mobility

can even be placed on a desk
suitable for any rooms with ventilation
and electricity
easy to move

Weight – no more 50 kg

Oxy Robot is the flagship test equipment of the Second Breath OÜ product line, most of our test equipments are developed on its platform - Dolomite, Dioxide, Monoxide

Data sheet

Technical specifications

Data sheet of breath simulator OXY ROBOT.pdf

13 KB

Software features

feedback of test results in real-time
automatic control of test parameters, fixation and formation of a test database with results.
to export test results DATABASE to your devices in PDF&EXCEL-file and print its
creating a breathing curve in real mode
to create DATABASE of relevant standards, test modes, types and models of RPE, manufactures of RPE
self-diagnosis
calibration

Interface languages: English

Software hosting: touch display on test bench Download

Relevant standarts

Testing breathing apparatuses (SCBA, CCBA rebreather, SCUBA, SCSR), сlosed-circuit escape respirators, aviation and space life support systems according to:

ISO 16900-5:2016(E)
and others*

* meets one or more standards. If you require testing to a standard not listed, please contact us
